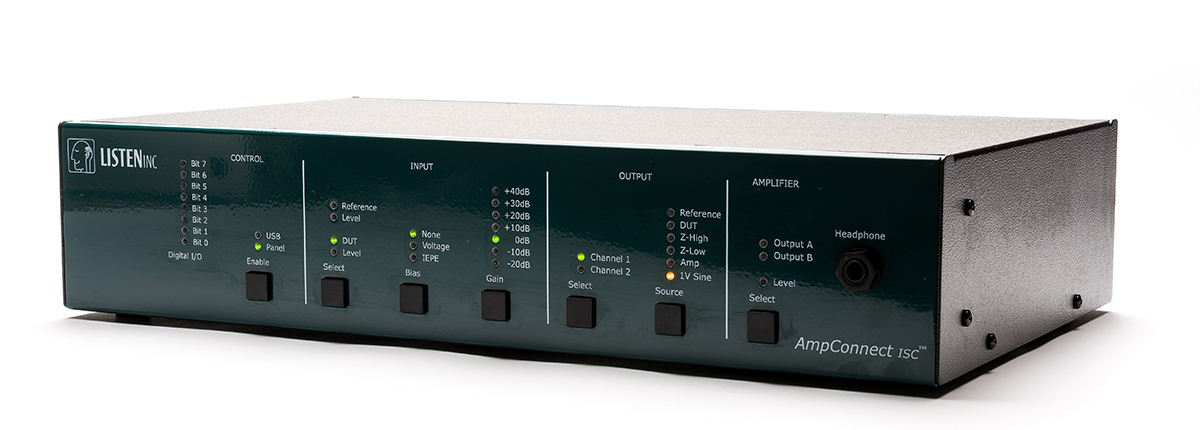

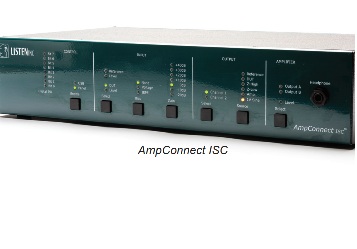

Soundcheck一体机AmpConnect™ ISC

Audio Interface
2 Channel, balanced inputs and outputs, supports up to 44.1 kHz sample rate and 24 or 16 bits.
Input Dynamic Range: 110 dB typical
Output Dynamic Range: 114 dB typical
Input/Output Coupling: AC
Amplitude linearity: ± 0.3 dB
Amplitude Flatness: 20 – 20 kHz ± 0.25 dB
THD @ 1 kHz: 0.001% typical
Crosstalk @ 1 kHz: -110 dB
Phase Linearity: ± 5 degrees

Power Amplifier:
Continuous Output Power: 60W RMS into 4W, 47W RMS into 8W
Frequency Response: -0.5dB at 20Hz; -0.2dB at 20kH
THD at 60W, 4 Ohms: 0.019%
Voltage Gain: +26.4dB, +/-0.1dB

Loudspeaker Current Measurement:
Z-High = 1V/A +/-1%
Z-Low = 100mV/A +/-1%
Output Impedance = 0Ω

Internal Sine Generator
Output Level: 0dBV (1V RMS) +/-0.1dB
Output Frequency: 1kHz +/- 1Hz

Reference & DUT Inputs:
Gain: -20dB to +40dB in 10dB steps
Maximum input at –20dB: 100V RMS
Maximum input at +40dB: 100mV RMS
Frequency Response: -3dB at 20Hz & 150kHz;
IEPE Bias: 10mA, 20VDC (max)
ECM / Electret Bias: 500mV – 12 VDC through 2.2kΩ

USB 2.0 Interface:
All front panel functions USB controllable
Front panel can be locked out via USB
Outputs automatically disabled upon USB disconnect or PC shutdown

Physical:
Without rack mounting flanges: 17 in. wide, 2-Unit (3-1/2 in.) high, 11 in. deep
Weight: 7 lbs (3.2kgm) approx.
Power: 85 – 264VAC 50/60 Hz, 150 Watts (max)
